Working principle:
Double twist machine can glue two or more strands of single yarn into yarn by twisting, and enhance the performance of the original yarn, to meet the needs of customers.
Double twist machine is mainly composed of power part, double twist unit and transmission part.
(1) The power part mainly includes the motor, electrical control box, indicator and operation panel.
(2) The structure of the double twist unit mainly includes the spindle brake device, the spindle part of the double twist machine, the yarn winding device, the special device of the double twist unit, etc.
The shape, structure and function of the main machine parts:
(1) Spindle brake device: mainly including spindle drive belt and pulley, belt spindle brake pedal.
(2) Spindle part of double twist machine: it mainly includes spindle plate, spindle tank, yarn tension device, yarn detractor, air ring cover, separator, yarn guide hook and yarn break hook, etc.
(3) Yarn winding device: tilt roller, overfeed roller.
Main Technical specification:
Machine type | Double sides, single layer |
Spindle speed | Normal: 5000-10000r/min |
Twist Range | 40-2200TPM |
Twist direction | S or Z |
Paneis | 1830 mm |
sect ions | Normal type 8 section s(max.10 sections) |
type of spindle | 146 or 166 |
Yarn cross ang le | Can be closed edge or straight edge |
Traverse | 152mm |
Traversing weight | Max .2.5kgs |
Feeding bobbin | Dia.37 *170mm |
Winding bobbin | 3°30°, 4°20°, 5°57° |
Take up capacity | 146# 1.25kg, 166# 1.6kg |
Start mode | Frequency converter |
Rated power | 15kw |
Dimension | Head L 1800mm * H 760mm * W1380mm + Tail L 400mm * H630mm *W 510mm |
Weight | 144 spindle （9 sections） total 4tons |
Capacity | Depends on the twisting range |

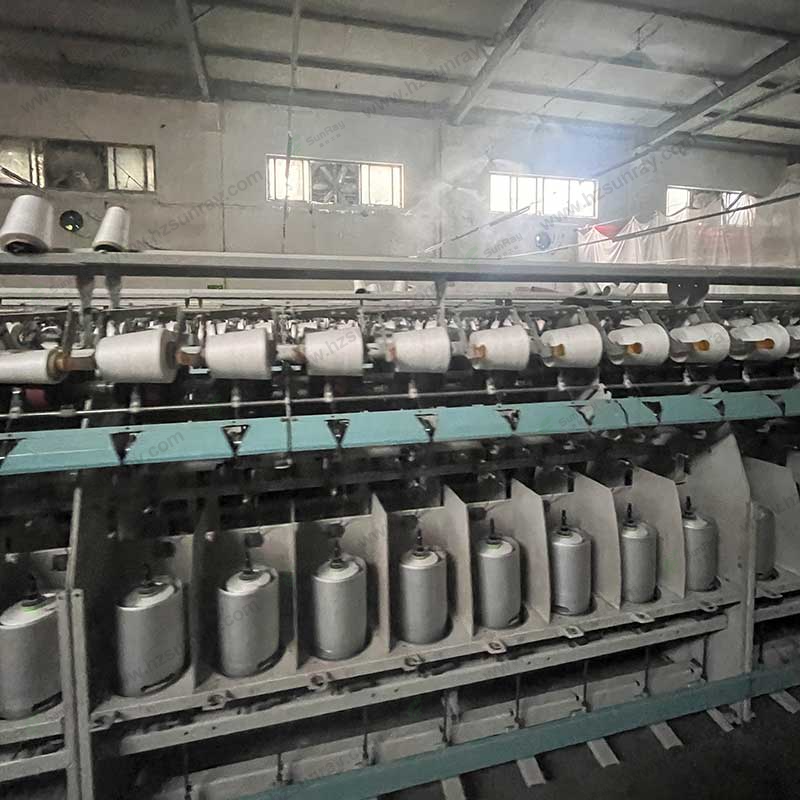

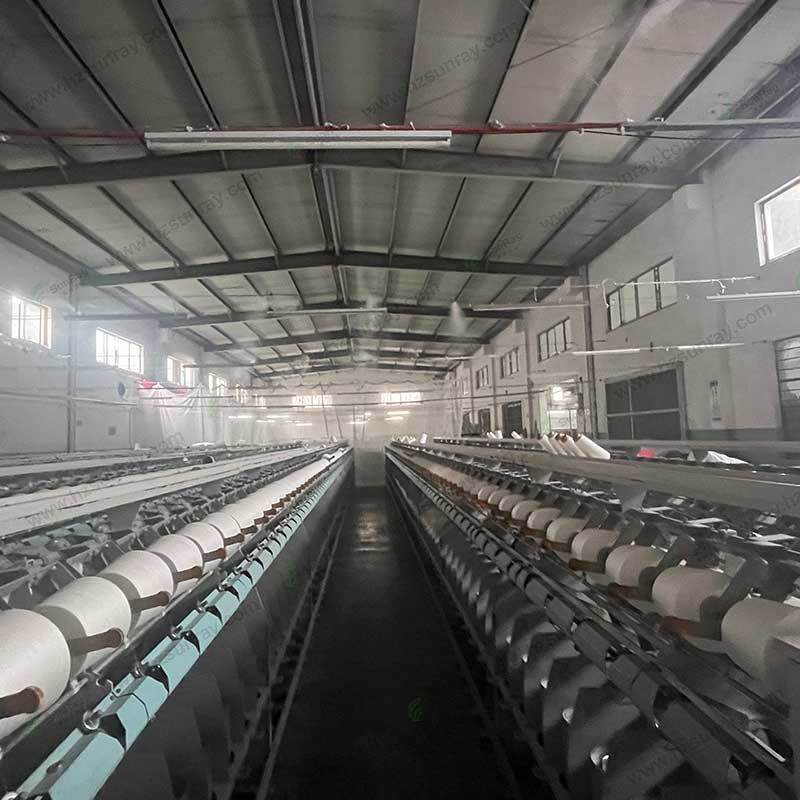

Product Display for Twisting Machine
High efficiency
High spindle speed, effectively increase productivity
Precision forming technology can effectively improve the efficiency of the yarn reverse.
High quality yarn
The pursuit of higher requirement of yarn twist unevenness
Effectively prevent the emergence of multiple strands of yarn
Effectively reduce oil pollution
High automation
Precise control technology for single spindle data display; Data acquisition system, effective implementation of automated production workshop.
Less maintenance
The fixed bearing structure can effectively reduce the oil change in the middle.
High stability
Good processing equipment to ensure the stability of parts
Mature control system to ensure the stability of equipment.
Less space
The compact design reduces the machine covering area by more than 10%.
Less energy consumption
Double bearing spindle structure, effectively reduce spindle energy consumption;
Excellent spindle structure, effectively reduce the energy consumption ofyarn balloon.
Our Packaging
Packages can be made with wooden pallet or woonden case:
