Chamber Filter Press

Chamber filter press is a kind of intermittent pressure filter equipment. The whole machine has a high degree of automation, according to the actual needs, it can realize semi-automation, full automation; Compared with other filter presses, it has the characteristics of large production capacity, high output per unit, small floor area, etc., and can be widely used in chemical industry, food, petroleum, metallurgy, pharmaceutical, mineral processing, coal washing, environmental protection and other industries.
Availability:

Chamber filter press :

Chamber filter press is a kind of intermittent pressure filter equipment. The whole machine has a high degree of automation, according to the actual needs, it can realize semi-automation, full automation; Compared with other filter presses, it has the characteristics of large production capacity, high output per unit, small floor area, etc., and can be widely used in chemical industry, food, petroleum, metallurgy, pharmaceutical, mineral processing, coal washing, environmental protection and other industries.




Working Principle:

Chamber filter press achieve the purpose of dehydration by extruding the filter plates to discharge the water in the sludge through the filter cloth. Namely, a certain number of filter plates under the action of strong mechanical force is closely lined up, then filter chamber is formed between the filter plate and filter plate area. Materials are fed into the filter chamber under strong positive pressure, the solid material are by formed into filter cake via filter medium (filter cloth), while the liquid part are discharged out by penetrating filter medium (filter cloth), so as to achieve the goal of solid-liquid separation.




Advantages:

simple structure, easy operation, stable and safe operation and convenient maintenance.




Features:

Adopt hydraulic pressure, the maximum pressure is 14MPa, and use contact pressure gauge to keep pressure automatically.

The maximum filtration pressure is 0.5mpa, to ensure the best conditions for the formation of filter cake, pressurized filtration.





Production Line:

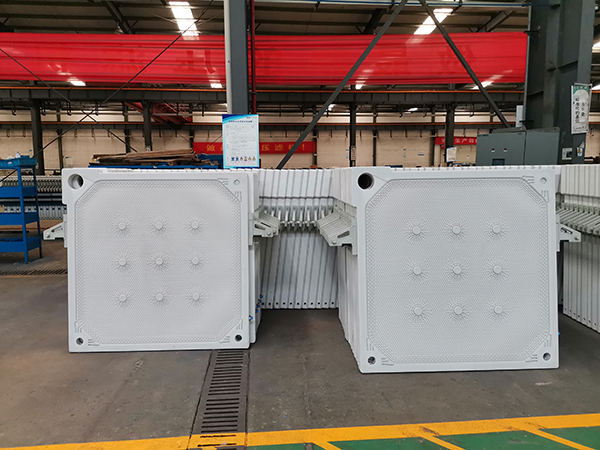

workshop for filter press 4

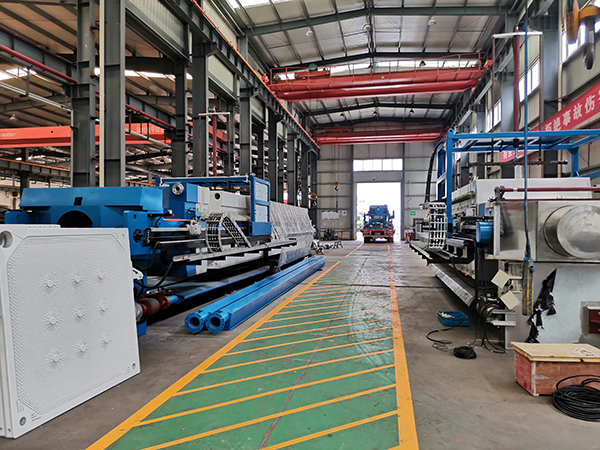

workshop for filter press 6


workshop for filter press

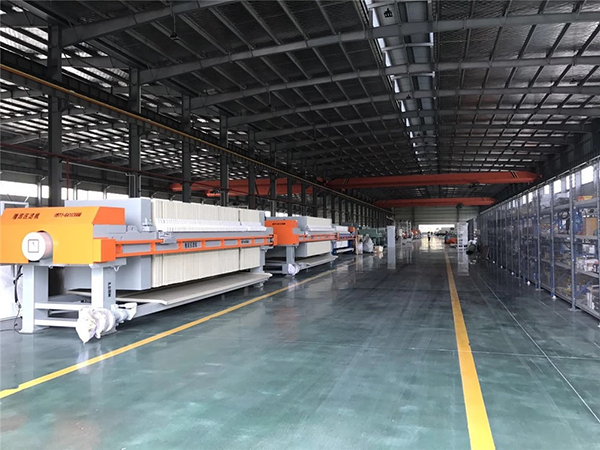

workshop for filter press 2

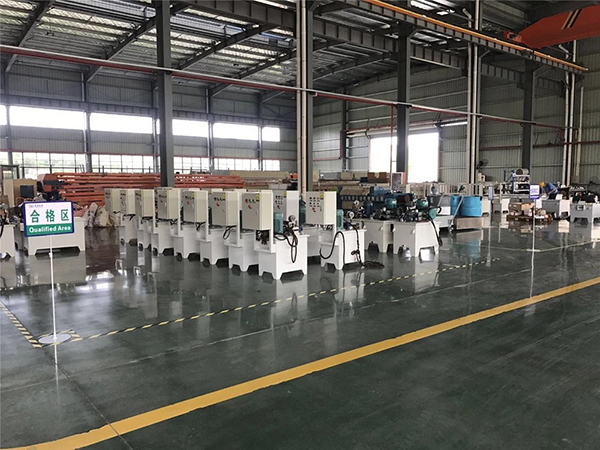

workshop for filter press 1

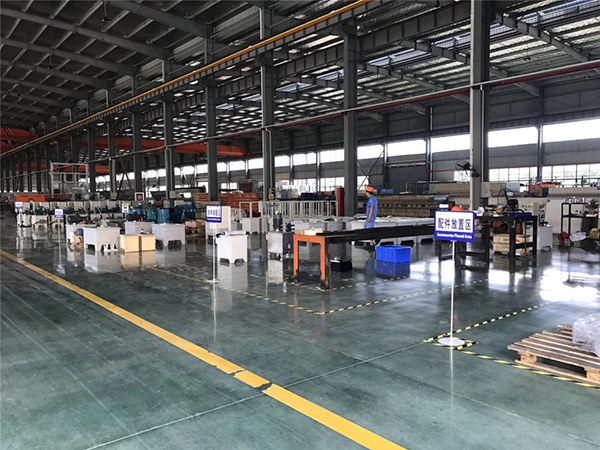

workshop for filter press 3
