Product Overview

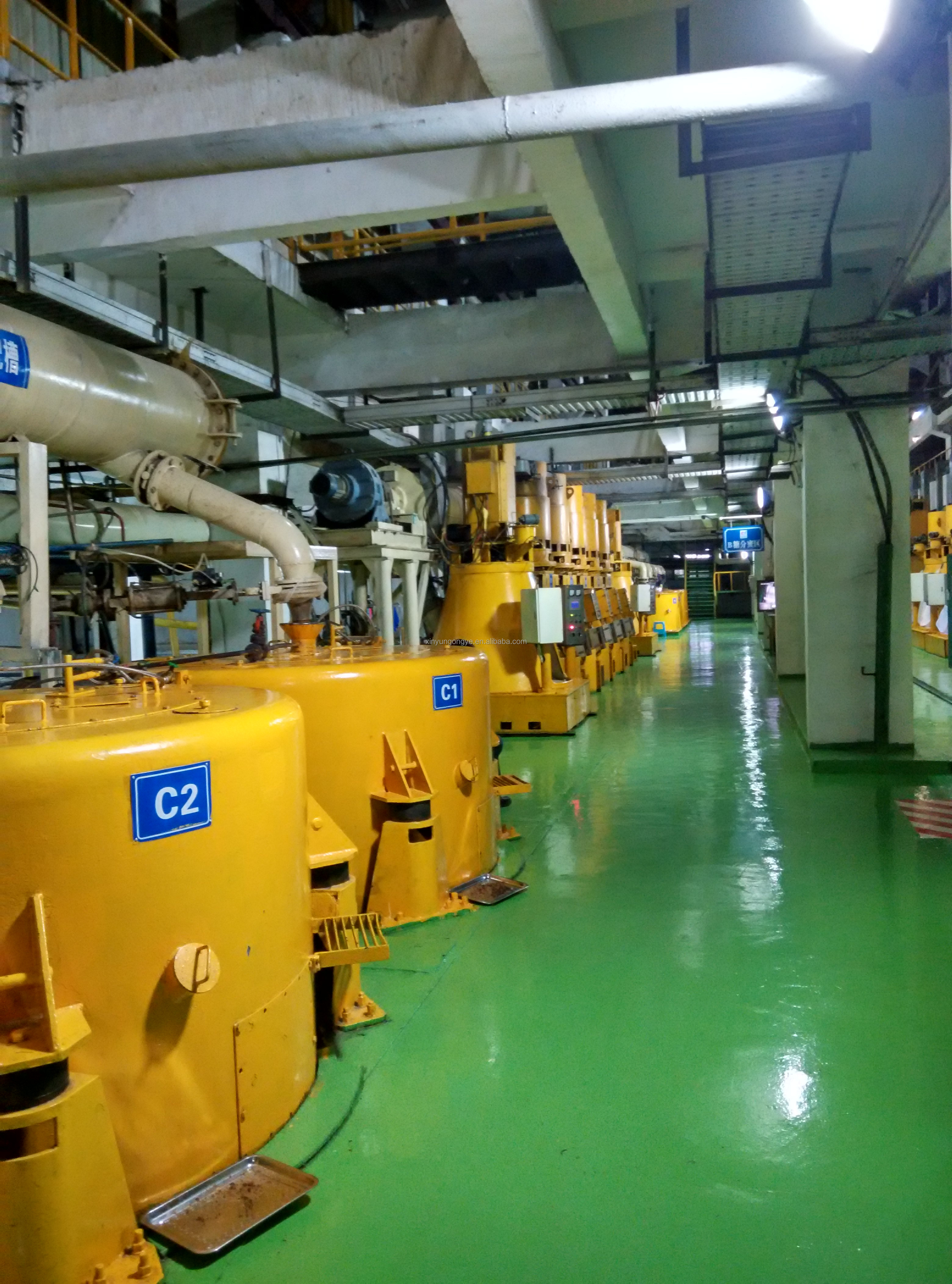

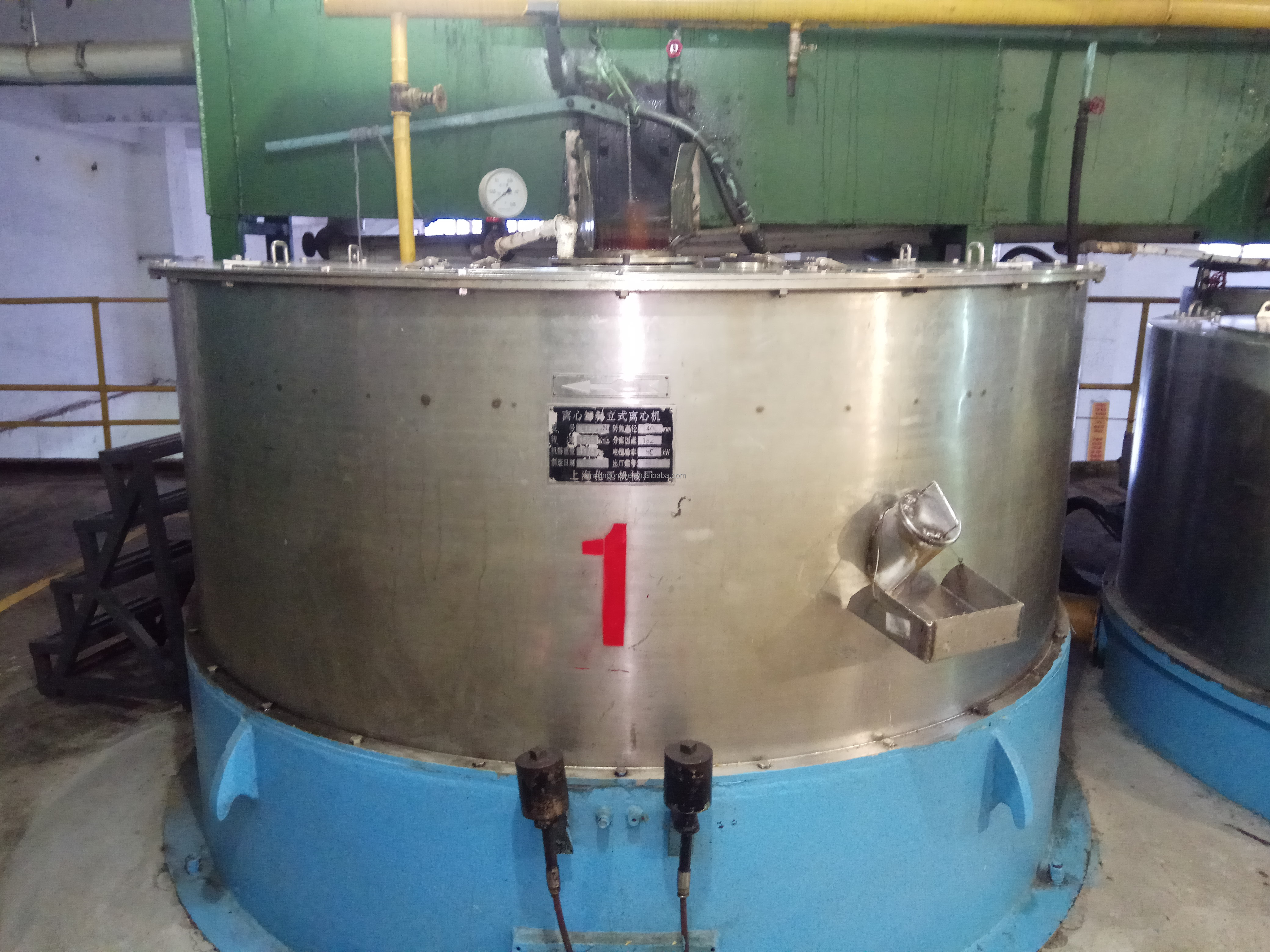

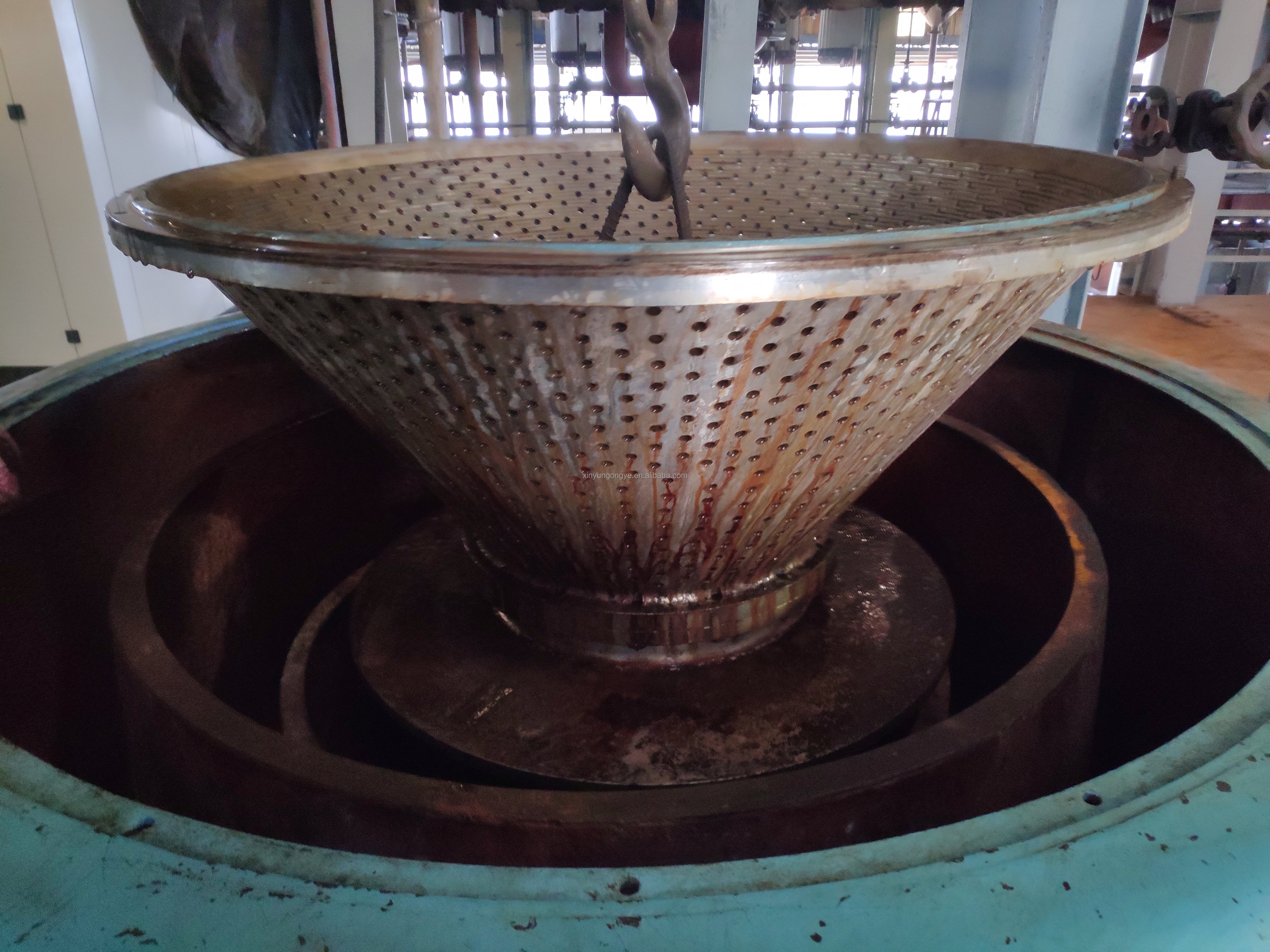

Our new developed laser screen can be used for below models of conical basket continuous centrifuge without customized mode. K series(Germany),FC series（Ffrance),SPV series (England),and also from China market(GUANGZHOU)IL series,(SHANGHAI)LI series ,(SHANDONG) SL series,YM series,GD(Lanzhou)
FEATURES AT A GLANCE
Right elevation Left elevation Front elevation
1.The micropores can be arbitrarily controlled between 0.04 ~0.12mm,and the mesh consistency is more than 99%.
2. Trapezoidal mesh with smooth inner surface of micropores.
3. We select high quality 316L corrosion resistant stainless-steel plate, it is used for processing under semi-hard condition after annealing. The actual thickness is 0.38mm, which is suitable for the solid-liquid separation of corrosive materials.
4. High microhole opening rate, the highest opening rate can reach to 25%.
PRODUCT SPECIFICATIONS
| Model | Front width of the hole (um) | Back width of the hole(um) | Hole openning rate(%) | hoes no.of one pc |
| K2300 | 60 | 80-90 | 9% | >170k |
| K2300 | 90 | 90-110 | 13.3% | >170k |
Manufacturing Technique

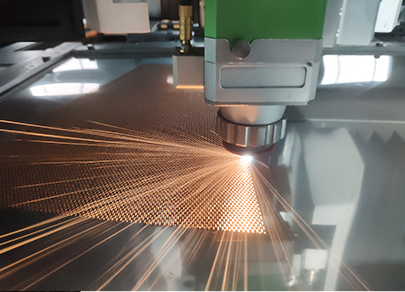

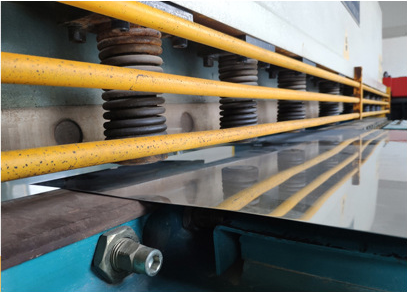

Tailoring Laser drilling
Production application
It can be used for centrifuges from various brand and models like: K series(Germany), FC series (France), SPV series
It can be used for centrifuges from various brand and models like: K series(Germany), FC series (France), SPV series
(England), and also from China market (GUANGZHOU) IL series, (SHANGHAI) LI series, (SHANDONG)SL series, YM
series, GD(Lanzhou),and it is customized available.
