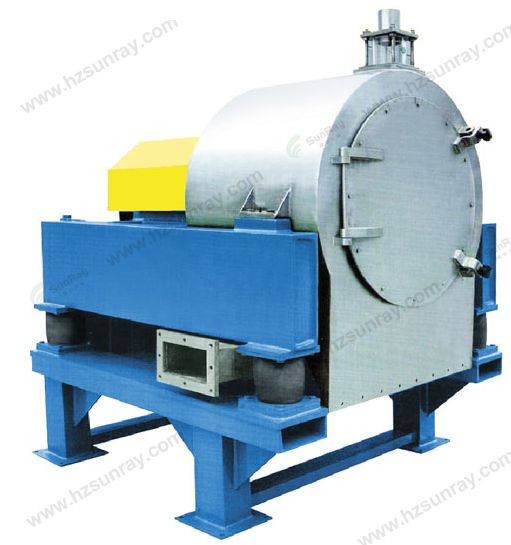

Horizontal Screw Discharge Filter Centrifuge

Product Description

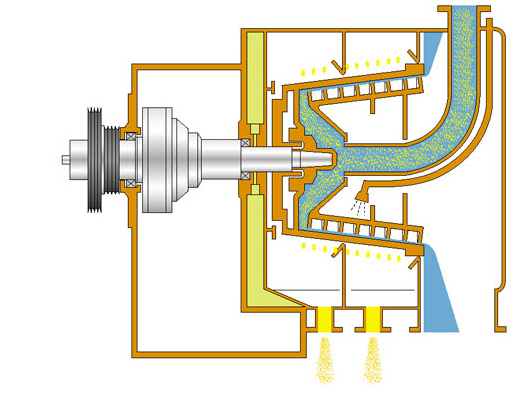

 Structure principle of discharge filter decanter centrifuge

The cone drum is equipped with a concentric discharge spiral,

 which rotates in the same direction at high speed and has a

 certain speed difference. The speed difference is generated by

 the transmission system and the differential. The suspension is

 continuously introduced by the feed pipe and evenly distributed

 to the inner cone of the drum. Under the action of centrifugal

 force, the liquid phase is discharged from the drum through the

 filter screen and the filter hole of the drum wall and out of the

 machine through the liquid outlet. The solid phase is trapped in

 the filter screen to form filter slag, and the filter slag is

 continuously moved to the big end of the drum under the joint

 action of the cone component force of centrifugal force and the

 discharge spiral, and discharged to the outside of the machine

 through the discharge tank, so as to realize the solid-liquid

 separation of the suspension

 Performance characteristics of discharge filter decanter centrifuge

  Horizontal screw discharge filter centrifuge can continuously feed, separate and

 discharge at full speed. It has the characteristics of compact structure, small

 volume, high separation factor, continuous operation, smooth running, strong

 adaptability, large processing capacity, low moisture content of filter cake,

 high separation efficiency, low energy consumption, and insensitive to

 suspension concentration fluctuations. Wash the separated material if

 necessary.

 Discharge filter decanter centrifuge application scope

The horizontal screw discharge filter centrifuge relies on the relative movement of the discharge screw and the rotating drum to ensure the uniform distribution of solid particles on the inner wall of the screen to prevent excessive vibration caused by uneven distribution. Even when stopped, the spiral has no residual potentially unbalanced solid particles. Centrifuge running smoothly, low vibration, low noise.

According to the operating conditions, perforated metal plate mesh, multi-layer sintered metal mesh or chequered metal strip welding long seam mesh can be used.

 For some difficult to separate materials, the centrifuge can also be adjusted and improved accordingly:

Increase the length of the drum, adjust the speed of the drum, adjust the difference between the drum and the discharge screw, change the half cone Angle of the drum cone, change the number of screw heads and the lift Angle of the discharge screw

 The adjustment of the centrifuge technical parameters and the improvement of the relevant parts must be determined before the production of the centrifuge product. In addition, according to the different corrosiveness of the separation, the material with different corrosion resistance is matched with it. Therefore, when the customer inquiries, please give detailed information about the characteristics of the separated material parameters, working conditions and separation requirements.

Technical Parameters
