PRE-COATED ROTARY VACUUM FILTER:
Pre-coat rotary vacuum filter is developed based on advanced technology, it is the highly efficient and precise solid & filtrate separation equipment by adding pre-coated technology to the ordinary rotary filter. With diversified design and excellent manufacturing technology, it is widely used in pharmaceutical, food, sugar refining, chemicals industries. It’s used for the need of absorbing the filtrate and removing the filter residue.
Working principle:
Pre-coated rotary vacuum filter has almost same working principle as the ordinary rotary filter; the main difference is this filter has filter aid (diatomite, Perlite for example) pre-coated before filtering. When filtering, the filter aid in the tank will form needed pre-coated on the drum surface by the vacuum suction, then the slurry will be injected, by the vacuum suction the separated filtrate penetrate the pre-coated and filter cloth, then drain out after going through the suction tube, liquid collection tube and gas-liquid separator, meanwhile the solid particles in the slurry are intercepted and scraped by the auto scraper together with the filter aid surface layer. When the pre-coated residue reached 10mm thickness, another cycle of pre-coated is needed for next working cycle.
Application fields:
1. Various sugar liquid (glucose, maltose, dextrin, fructose, sucrose etc.) filtering residue removal
2. Pharmaceutical industry Taylor DX, spectinomycin fermentation liquid filtering residue removal
3. Amino acid, enzyme preparation fermentation liquid filtering residue removal
4. Wine and rice wine mud filtering residue removal
5. Food, beverage and fruit juice industry filtering residue removal
6. Chemical industry waste water filtering residue removal
7. Carrageenan etc. food additives filtering
Product features：
1. Customized design to meet various customers' demands
2. Using pre-coating technology, high filtrate clarity
3. Auto scraper discharge mechanism, high filtering effect
4. Spraying device can be added to the drum surface to ensure better washing effect
5. Serious process device, easy installing and using
6. Good producing environment, easy and convenient operation
Technical feature（on an example of glucose filter）:
model Item | YT4 | YT10 | YT 20 | YT 25 | YT 30 | YT 35 | YT 40 | YT 45 | YT 50 | YT60 |
Filter area m2 | 4 | 10 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 |
Drum speed r/m | 0.5 ~ 5.1 | 0.5 ~ 5.5 | 0.49~ 4.9 | 0.49~ 4.9 | 0.5 ~ 4.5 | 0.45 ~ 4.5 | 0.45~ 4.5 | 0.4 ~ 4.5 | 0.4 ~ 4.0 | 0.35 ~ 3.5 |
Sugar solution DS value | 30％-35％ | |||||||||
Capacity (sugar solution) | 0.32～0.56m³ / m² .h | |||||||||
Vacuum degree (Mpa) | 0.04~0.06 | |||||||||
Main drive motor (kw) | 1.5 | 2.2 | 2.2 | 2.2 | 3 | 3 | 3 | 4 | 4 | 4 |
Mixer swing Times/minute | 21-18 | |||||||||
Agitating motor（kw） | 1.5 | 2.2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
Weight (kg) | / | / | / | / | 7412 | 8487 | 9561 | 10635 | 11711kg | 14680kg |
Dimension (cm) | / | / | / | / | 578×400×279 | 528×496×368 | 616×496×368 | 656×496×368 | 702×500×368 | 751×500×368 |
The manufacturer reserves the right to change the relevant technical parameters.
For more models please contact us.

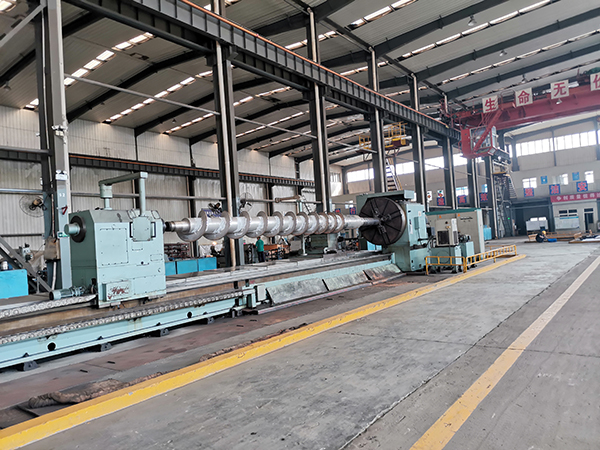

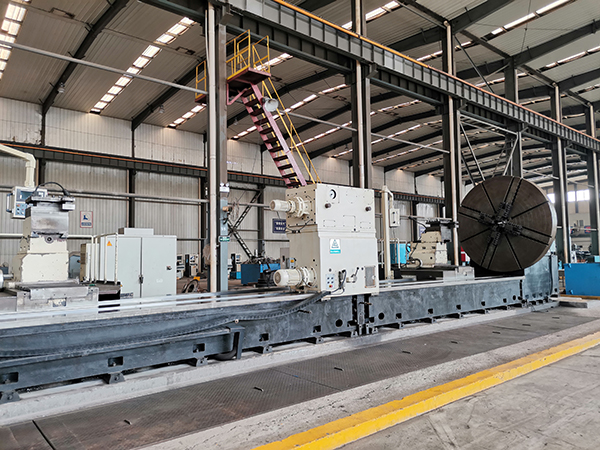

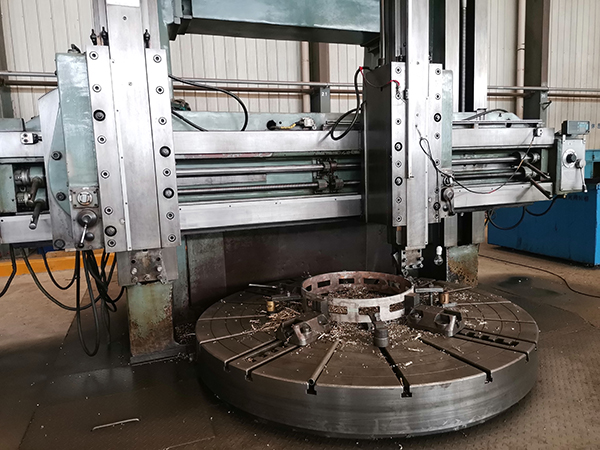

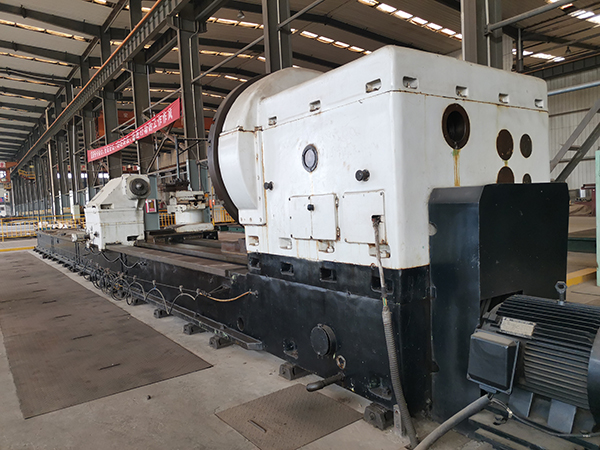

Production Line：
