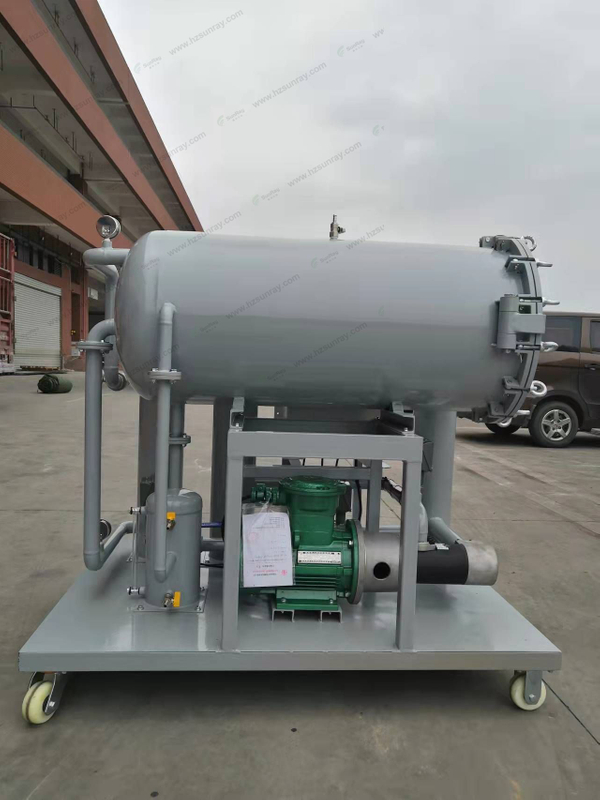

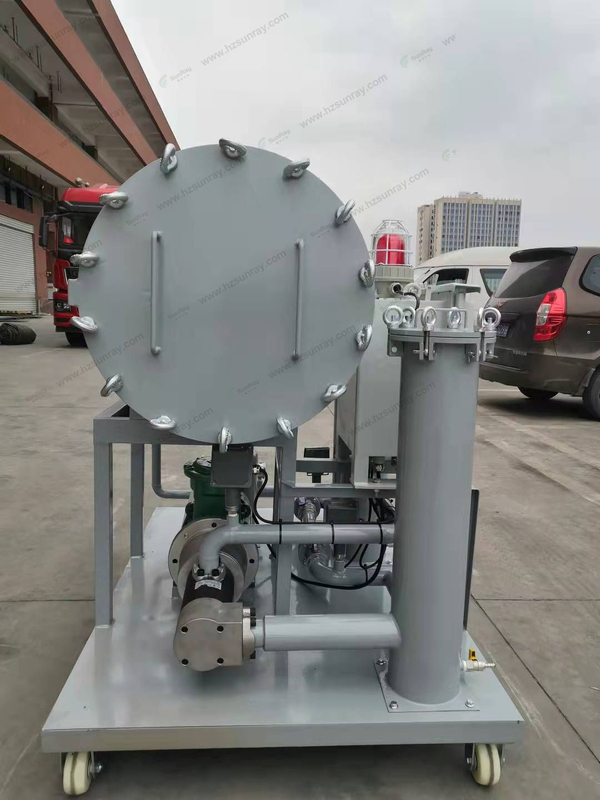

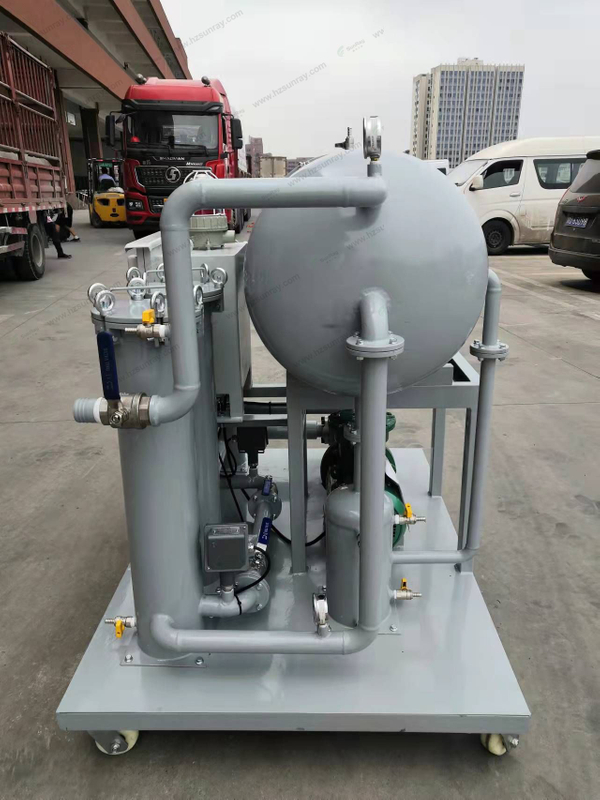

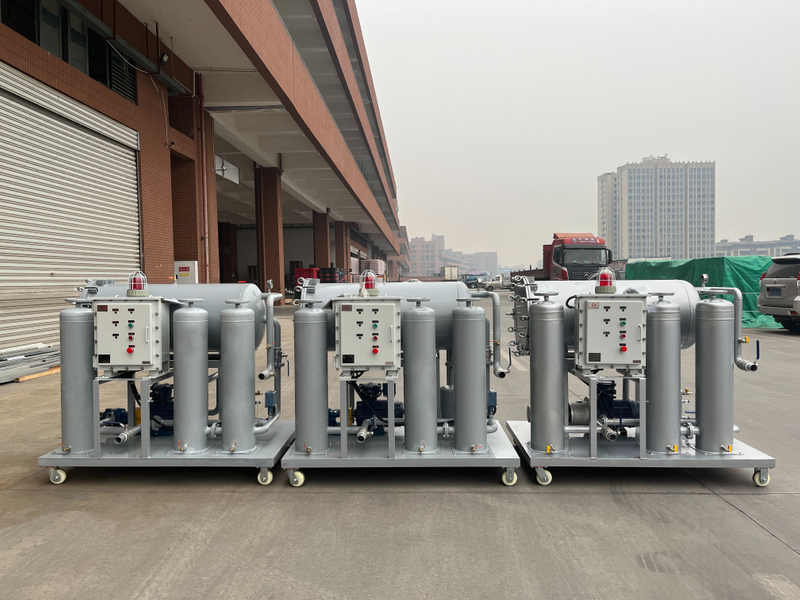

SunRay Series Coalescence Separation Filter (fuel Oil/light Oil Filter)

SunRay coalescence separation filter (fuel oil filter) uses

SunRay series coalescence separation filter (fuel oil filter) is composed of coarse filtration system, secondary filtration system, fine filtration system and coalescence separation chamber, oil pump and circuit control system. Including three functions: 1) filtration, dehydration function, remove emulsified water, free water, impurities in the corresponding oil; 2) Filter oil separately and use as a refueling machine; The working principle is: the oil flows through the special high-efficiency filter, through the filter from the surface to the inside, along the flow direction gradually shrinking the gradual pore structure, layering to intercept the pollution particles of different sizes, improve the service life and filtration efficiency of the filter; 3) Set the internal circulation to facilitate the replacement of coalescence separation filter element.

It is suitable for the purification of light oil such as aviation fuel, gasoline, kerosene, diesel, to remove moisture and impurities in the oil, extend the life of the nozzle and improve the efficiency of the fuel engine. Ideal equipment for oil depots and storage stations.

SunRay coalescence separation oil filter (fuel oil filter) working principle

The oil first enters the coarse filter system in the system, after treatment, the impurities of large particles are removed to protect the oil pump from being damaged, after the oil is pumped into the secondary filtration system, after treatment into the coalescence filter element in the coalescence chamber, due to the unique polar molecular structure of the coalescence filter material, the free water in the oil and the emulsified water are coalescence into larger water droplets after passing through the filter element. It sinks under gravity into the water storage tank. The fine water molecules are accompanied by the oil to the separating filter element under the action of inertia. The separation filter element is made of special hydrophobic material. When the oil passes through, the fine water molecules are blocked outside the filter element, aggregate with each other, and settle to the storage tank in the lower part of the coalescent chamber due to gravity. After the oil is dehydrated, it enters the fine filtration system to ensure that the cleanliness of the oil entering the user's tank meets the design standard.

Coalescing separation filter (fuel oil filter) features

● This type of oil filter adopts a special oil-water separation filter, which does not require heating, and the dehydration efficiency is more than 20 times that of other forms of oil filter.

● Because it is not heated, it fully ensures that the additives in the oil do not crack and deteriorate.

● Simple operation, can automatically run online water, do not need to keep a guard.

● Low operating cost, 20-40% lower than the cost of vacuum oil filter, centrifugal separation, plate and frame pressure filter.

Coalescing and separating oil filter (fuel oil filter) technical parameters table
