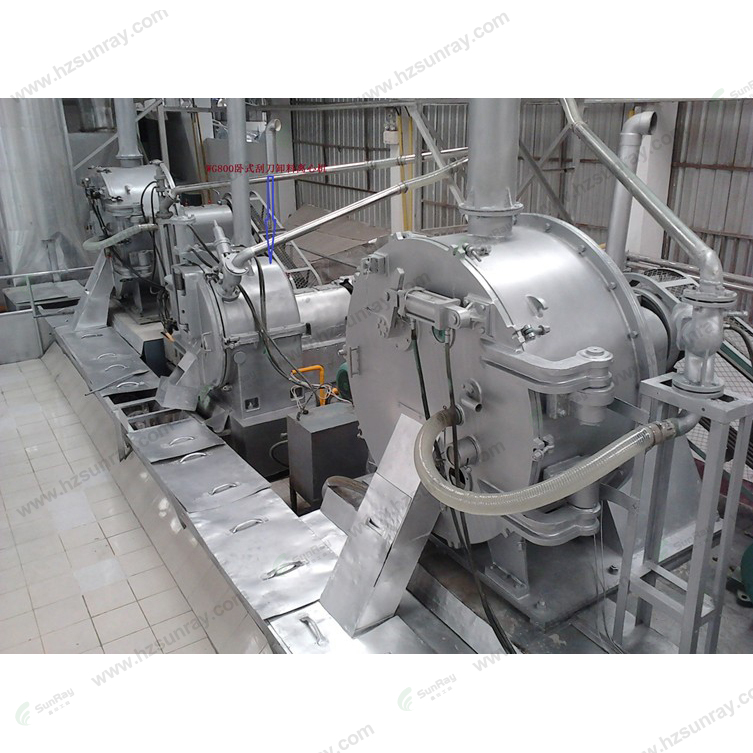

GK Horizontal Scraper Discharge Centrifuge

When the centrifuge is running at full speed, the feed valve is opened, and the separated suspension enters into the drum through the distributing bucket and evenly distributes on the inner wall of the drum filter medium. Under the action of centrifugal force, the liquid phase is flung out of the drum through the filter medium and the holes on the drum, while the solid phase is trapped on the filter medium to form a filter cake. When the filter slag layer reaches a certain thickness, close the feed valve to wash the solid, and then dry it. Finally, the filter slag layer is removed by rotating scraper, and the material is discharged out of the machine by shuttle groove or spiral conveyance.
Availability:

Working principle:

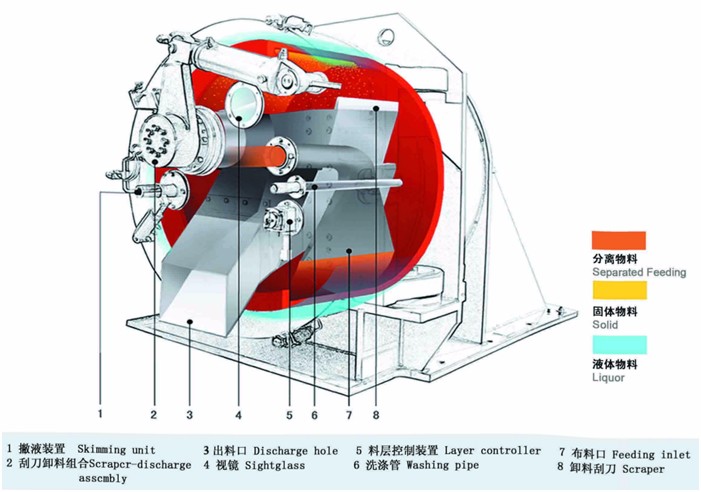

When the centrifuge is running at full speed, the feed valve is opened, and the separated suspension enters into the drum through the distributing bucket and evenly distributes on the inner wall of the drum filter medium. Under the action of centrifugal force, the liquid phase is flung out of the drum through the filter medium and the holes on the drum, while the solid phase is trapped on the filter medium to form a filter cake. When the filter slag layer reaches a certain thickness, close the feed valve to wash the solid, and then dry it. Finally, the filter slag layer is removed by rotating scraper, and the material is discharged out of the machine by shuttle groove or spiral conveyance.




Structure and performance Characteristics:

(1) Fully automatic operation with low manual labor intensity;

(2) Each actuator adopts hydraulic system for automatic control, stable and reliable operation;

(3) Electric adopts PLC control, accurate movement, convenient adjustment;

(4) Driven by frequency converter or hydraulic coupler, smooth start and stop;




Application:

Can be widely used in food, chemical, pharmaceutical, light industry and other industries.




Typical application materials:

starch, potassium chloride, table salt, heavy alkali, caustic soda, diglycine, sodium cyanide, calcium hydrogen phosphate, ammonium chloride, etc.




Main specifications and technical parameters:

Model

GK800—NB

GK1250—NB

GK1600—NB/ND

Drum Dia.

(mm)

800

1250

1600

Drum Length(mm)

450

600

800

Drum speed(r/min)

1550

1200

950

Loading limit(kg)

130

400

850

Loading volume(L)

100

310

660

Separating factor(G)

1070

1006

800

Main motor power(kw)

37

55

110

Dimension (mm)

2460×1670×1300

3100×2070×1775

3385×2725×2220/

4720×2725×2220

Weight (kg)

3350

7420

12400/12800
