The filter press is a machine that extracts the solids from the mixture and achieves the effect of solid-liquid separation. The solid-liquid separation is carried out by means of filtration and mechanical squeezing. The filter press consists of a number of filter plates and frames that are stacked together to form a filter chamber, using pressure as the driving force for filtration. The press and the frame are pressed and pulled together, and the unloading of the slag and the cleaning of the filter cloth can be fully automated, which facilitates the development of the filter press into a larger machine.
The function of the filter press is similar to that of the Rotary Vacuum Filter. In some processes, the filter press can also be used in conjunction with other equipment, for example, to dewater the solid phase (solid phase) from the decanter centrifuge in a press.

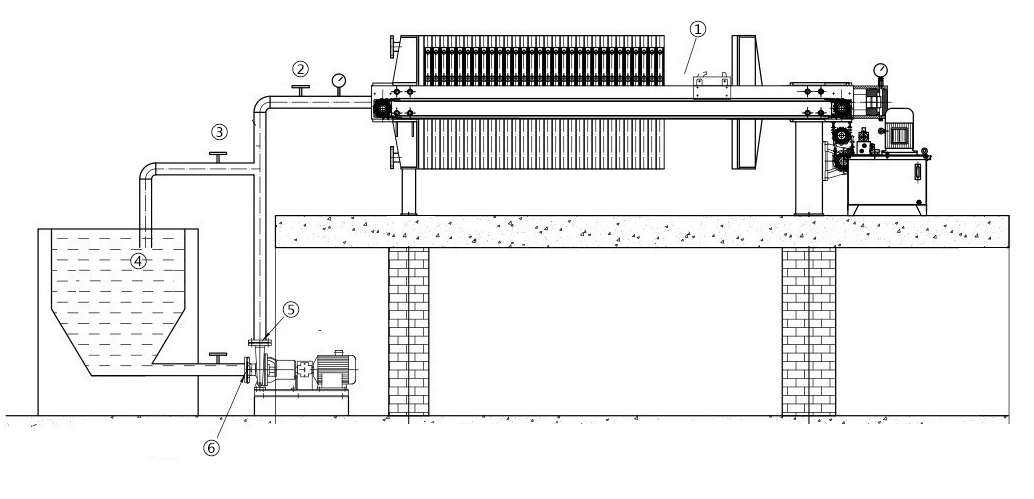

Concentrated feed tank
Working cycle process:
filter plate pressing-feeding and filtering- pressing again- releasing the filter plate and unloading the filter cake- cleaning the filter cloth into the next cycle.
Unlike the Rotary Vacuum Filter, it is an intermittently operated machine. It is a positive pressure, high pressure dewatering machine with a large pressure difference, and is currently considered to be the lowest water content filter among solid-liquid separation equipment. It has low energy consumption, low metal loss and a clear and transparent filtrate. It is also an excellent machine that can be used without adding flocculants.
|Application Areas||Traditional Segment Industry||Emerging Segment Industry|
|Chemical Engineering||Chlor-alkali,inorganic salts, rayon viscose, glycerine, silica||fuels, pigments, silicic acid, sodium sulphate,manganese sulphate, ferric hydroxide,titanium dioxide,fluorine chemicals, lithium chemicals, silicon carbide,Nickel and cobalt chemicals, potassium chlorate|
|Environmental Protection||Industrial wastewater sludge, industrial solid waste||Sludge from urban sewage plants, water treatment plants sludge, dredged sludge from rivers and lakes|
|Mineral and Process||Non-ferrous metals, metal tailings, coal washing||Sludge from urban sewage plants, water treatment plants sludge, dredged sludge from rivers and lakes|
|Mineral and Process||Non-ferrous metals, metal tailings, coal washing||Non-metallic ores, kaoline|
|Food||Alcohol, red wine, yellow wine, cooking oil, citric acid,Juice and pectin, sugar syrup, various types of starch, thick vegetarian soup mixes||Beer, seaweed gum, palm oil, sugar Vegetable sugar, cane sugar, food additives|
|Medicine||Pharmaceutical intermediates, proprietary Chinese medicines, raw materials||Fermentation broth, enzyme preparation|
