SunRay
Product Description
5000*1480*1700 Technical parameters: Drum diameter (mm) : 600 Maximum rotation speed (r /min) : 3300 Maximum separation factor (G): 3655 Maximum aspect ratio (H/D): 4.4 Production capacity (t/ h) : 15-25 Main motor Power (KW) : 75 Weight (kg) : 7000 External dimension (L*W*H) : 5000*1480*1700
Application Scope
Liquid purification, liquid mixture separation, solid concentration and dehydration, wet classification, component extraction
Industry application
Environmental protection (oil, water, slag separation is an innovative new technology: mainly used in oil field oil sludge, the refinery chemical plant oil bearing sewage and other kinds of sewage purification, etc.), food (protein, starch, dairy products, beer, juice, beverage category), animal and plant oil, fish oil, seed oil, biodiesel, etc.), mineral oil (oil, coal tar, etc.), chemical and biological (various fermented liquid, algae, etc.), biochemical, pharmaceutical and other industries
Technical parameters
| model | Drum diameter (mm) | Maximum rotation speed (r/min) | Maximum separation factor (G) | Maximum aspect ratio (H/D) | Production capacity (t/h) | Main motor Power (kw) | Weight (kg) | External dimension (L*W*H)(mm) |
| LW250 | 250 | 5800 | 4700 | 4.4 | 1~3 | 11 | 1500 | 2500*700*1090 |
| LW360 | 360 | 4600 | 4260 | 4.4 | 2~5 | 15 | 2500 | 3100*850*1150 |
| LW420 | 420 | 4200 | 4200 | 4.5 | 3~10 | 30 | 3500 | 3685*1000*1460 |
| LW450 | 450 | 3900 | 3830 | 4.5 | 4~15 | 37 | 4000 | 2950*1050*1500 |
| LW500 | 500 | 3600 | 3625 | 4.5 | 6~20 | 45 | 4500 | 4000*1100*1400 |
| LW550 | 550 | 3400 | 3557 | 4.5 | 10~20 | 55 | 5500 | 4500*1200*1600 |
| LW600 | 600 | 3300 | 3655 | 4.4 | 15~25 | 75 | 7000 | 5000*1480*1700 |
| LW650 | 650 | 3200 | 3725 | 4.4 | 20~50 | 90 | 8500 | 5450*1485*1750 |

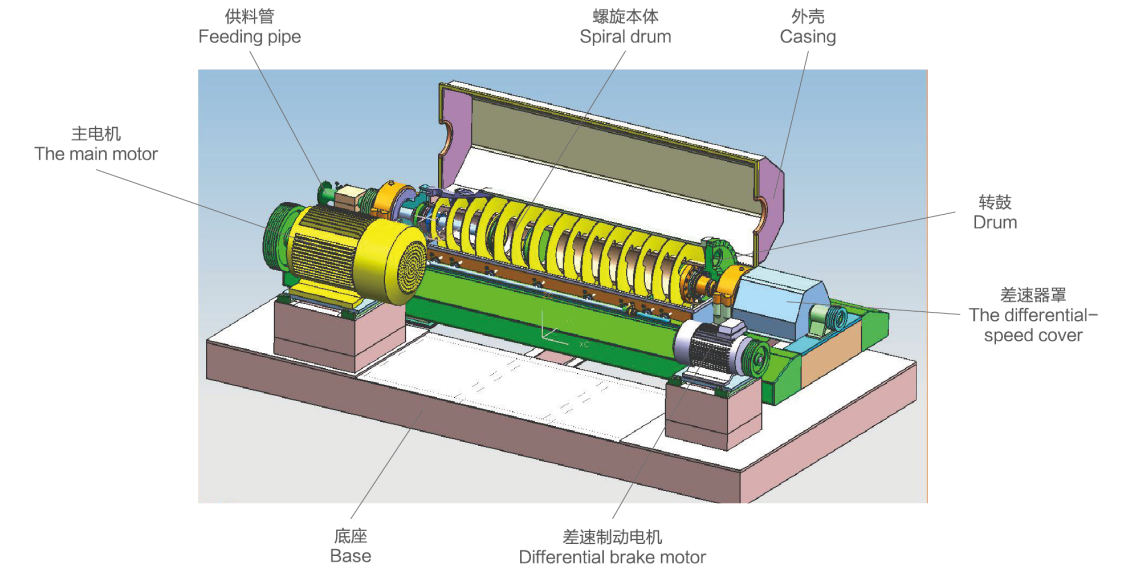

Structure Diagram
Product Description
5000*1480*1700 Technical parameters: Drum diameter (mm) : 600 Maximum rotation speed (r /min) : 3300 Maximum separation factor (G): 3655 Maximum aspect ratio (H/D): 4.4 Production capacity (t/ h) : 15-25 Main motor Power (KW) : 75 Weight (kg) : 7000 External dimension (L*W*H) : 5000*1480*1700
Application Scope
Liquid purification, liquid mixture separation, solid concentration and dehydration, wet classification, component extraction
Industry application
Environmental protection (oil, water, slag separation is an innovative new technology: mainly used in oil field oil sludge, the refinery chemical plant oil bearing sewage and other kinds of sewage purification, etc.), food (protein, starch, dairy products, beer, juice, beverage category), animal and plant oil, fish oil, seed oil, biodiesel, etc.), mineral oil (oil, coal tar, etc.), chemical and biological (various fermented liquid, algae, etc.), biochemical, pharmaceutical and other industries
Technical parameters
| model | Drum diameter (mm) | Maximum rotation speed (r/min) | Maximum separation factor (G) | Maximum aspect ratio (H/D) | Production capacity (t/h) | Main motor Power (kw) | Weight (kg) | External dimension (L*W*H)(mm) |
| LW250 | 250 | 5800 | 4700 | 4.4 | 1~3 | 11 | 1500 | 2500*700*1090 |
| LW360 | 360 | 4600 | 4260 | 4.4 | 2~5 | 15 | 2500 | 3100*850*1150 |
| LW420 | 420 | 4200 | 4200 | 4.5 | 3~10 | 30 | 3500 | 3685*1000*1460 |
| LW450 | 450 | 3900 | 3830 | 4.5 | 4~15 | 37 | 4000 | 2950*1050*1500 |
| LW500 | 500 | 3600 | 3625 | 4.5 | 6~20 | 45 | 4500 | 4000*1100*1400 |
| LW550 | 550 | 3400 | 3557 | 4.5 | 10~20 | 55 | 5500 | 4500*1200*1600 |
| LW600 | 600 | 3300 | 3655 | 4.4 | 15~25 | 75 | 7000 | 5000*1480*1700 |
| LW650 | 650 | 3200 | 3725 | 4.4 | 20~50 | 90 | 8500 | 5450*1485*1750 |
Structure Diagram
